elevate Your Facility with HSP Doors

Model V01 High Speed Performance Door

Designed for openings up to 20' x 20', our Servo Drive technology offers rapid openings at speeds up to 8' per second with seamless soft start and stop features.

Choose from 3 headroom configurations and 2 standard colors, with optional RAL finishes.

Model V01
Three Configurations to Fit Your Space Needs

V01-STD

Standard version for doors up to 20' x 20' and speeds up to 8' per second with a headroom ranging from 29-1/8" to 38-3/16".

V01-LHR

Low headroom version for tighter requirements with a headroom ranging from 23-1/4" to 25-5/8"

V01-TRK

Track headroom version only requiring 23-1/4" of head space regardless of opening height.

Features

Innovative and Intuitive Construction Utilizing Readily Available Domestic Components

Designed for effortless installation and maintenance, the V01 features intuitive access guides, easily removable cover plates, and components that are a breeze to service.

Our commitment to efficiency means all replacement parts are available locally, allowing for minimal downtime in the event of an impact or maintenance.

Full Range of Accessories

LDesigned for flexibility, the controller supports a range of industry-standard accessories and seamless car wash integration.

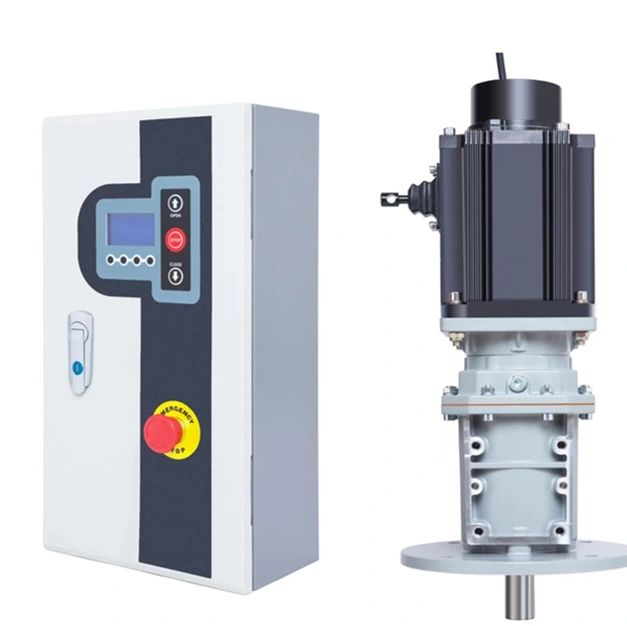

Servo Drive Technology

Enjoy seamless functionality with our doors featuring a Servo drive that guarantees smooth acceleration and precision handling.

Exceeding safety requirements

Equipped with a light curtain and safety edge, our door goes above and beyond UL325 safety standards.

Model VO1 Detailed InformationFor up to 20' x 20' openings

Versions

STD - Standard Headroom

LHR - Low Headroom

TRK - Track Heardoom

Colors

Standard: Silver or Black

Optional: Custom RAL Colors

Vision Panels

Standard: Lexan

Optional: Tinted or Frosted Glass

Door Speed

Opening speed up to 8' per second with minimal soft start and stop. Speed varies on opening size and version.

Power Required

Standard: 230V 1PH 60HZ

Optional: 115V, 208V or 460V using transformers.

Warranty

2-5-7 Limited Warranty

Resources for the Model V01

PDF
V01 SS2602.pdf535 KB
